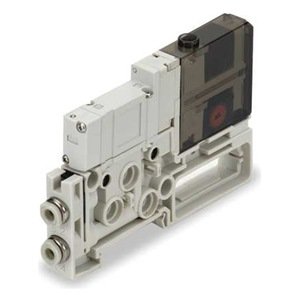

Valve & Manifold, Solenoid Return, 24 VDC description
- D-Sub Pneumatic Control Valves
- Compact, modular valve system allows multiple valves to be stacked and mounted to a machine frame or other location. Valves can be replaced without disassembling the valve stack or disturbing the air connections. Lightweight system features low power consumption. D-sub pin electrical connections are built-in. LEDs and manual overrides are standard.
- Max. temp. range: 41° to 122°F
- Max. operating pressure: 101 psi
- 10mm Valves
- Have 5/32" push-to-connect port connections and require 1 Manifold End Plate Kit 1ZTE3 to assemble valve stack.
Solenoid Valve and Manifold, 4 Way/2 Position/Solenoid Return, Coil 24 VDC, Max Temp Range 41 to 122 F, Max Operating PSI 101, CFM 8.5, CV 0.22, 5/32 In Tube Size Connection, Length 4 11/64 In, Width 7/16 In, Height 2 11/16 In
